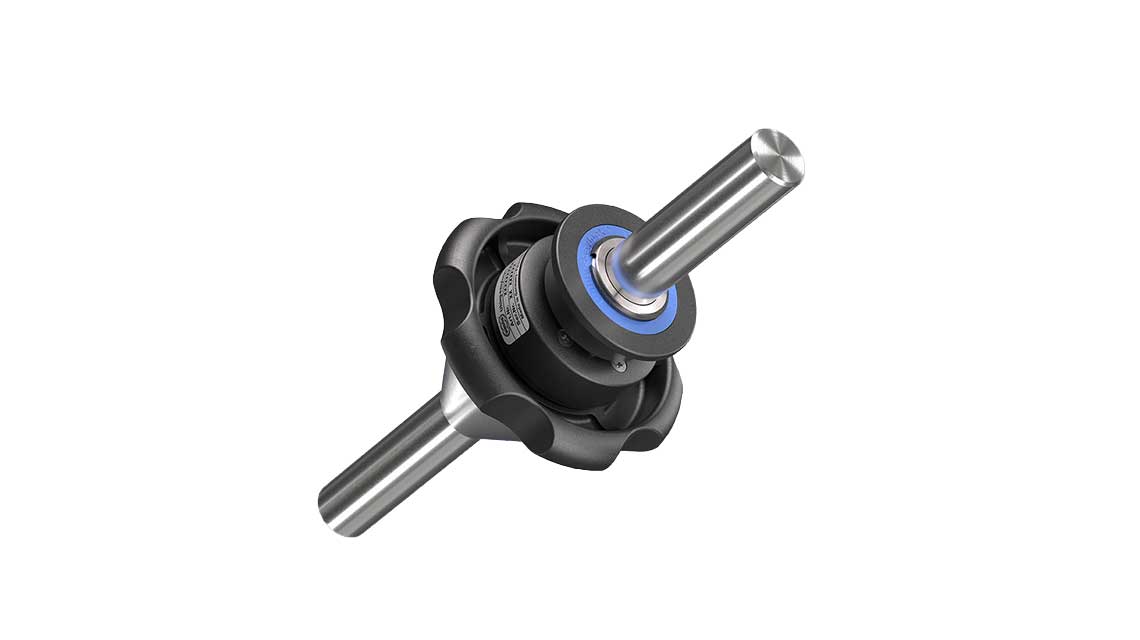

Uhing Easy lock

Uhing easylock®

Tensioning system for bobbins, rollers and static applications

When it comes to fast, tool-free clamping and releasing of components on smooth shafts, Uhing-easylock is the clever solution. Developed for applications with high demands on ease of use and process reliability, our clamping element enables the friction-locked fixing of rollers, sleeves, spools, devices, etc. - simply by hand.



The main product features:

  • shortest changeover times
  • one-handed operation
  • high clamping forces on a smooth shaft
  • compact, rotationally symmetrical design
  • maintenance-free and vibration-resistant
  • also suitable for static applications
  • modular design for easy adaptation to clamping tasks
  • no tools required
  • also suitable for driven shafts



Type designation Shaft Ø [mm] Holding force [N]
EL III-10 10 400
EL III-12 12 500
EL III-15 15 700
EL III-16 16 800
EL III-20 20 1000
EL III-22 22 1000
EL III-25 25 1800
EL III-30 30 2800
EL III-35 35 4000
EL III-40 40 5000



Catalogue | Uhing-easylock®:
