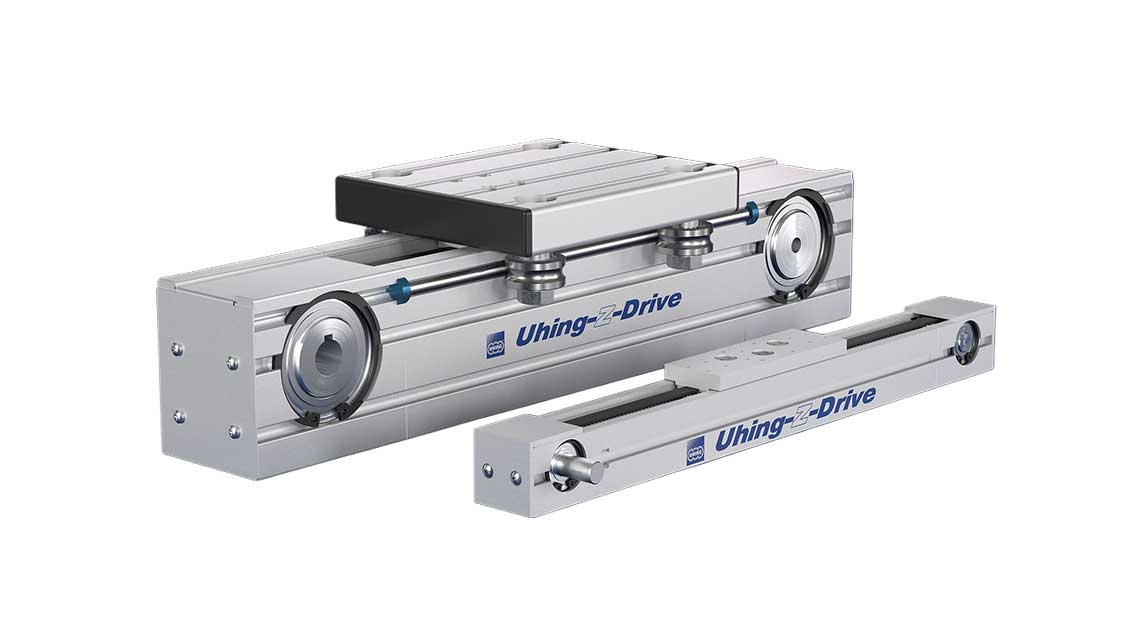

UHING® timing belt drive (AZ)
Timing belt drive (AZ)
Timing Belt Drive translates the rotary motion of a motor into a precise linear movement – efficient, robust and versatilely configurable.
About the product:
- easy installation
- precise guidance
- high traverse speed and acceleration
- extensive range of types and accessories
| Type designation | Distance/rev. [mm] | Max. speed v [m/s] | Max. load [N] | Guide |
|---|---|---|---|---|
| AZ 1010 | 81 | 3.5 | 1200 | Round rails |
| AZ 1040 | 200 | 5 | 146 | Round rails |
| AZ 2000 | 114 | 1.5 | 90 | Slide rails |
| AZ 2001 | 144 | 5 | 1000 | Round rails |
| AZ 2004 | 190 | 5 | 1200 | Round rails |
| AZ 2005 | 190 | 5 | 1200 | Round rails |
